| Weight | 0,9 kg |
|---|---|
| Dimensions | 24 × 16,3 × 6 cm |
| Cellular | 4G/LTE-A CAT7 |
| Product Type | Cellular Routers |
| WAN Interface | 1x 10/100/1000M Ethernet 1x Embedded Cellular Modem with Redundant SIM Slots |

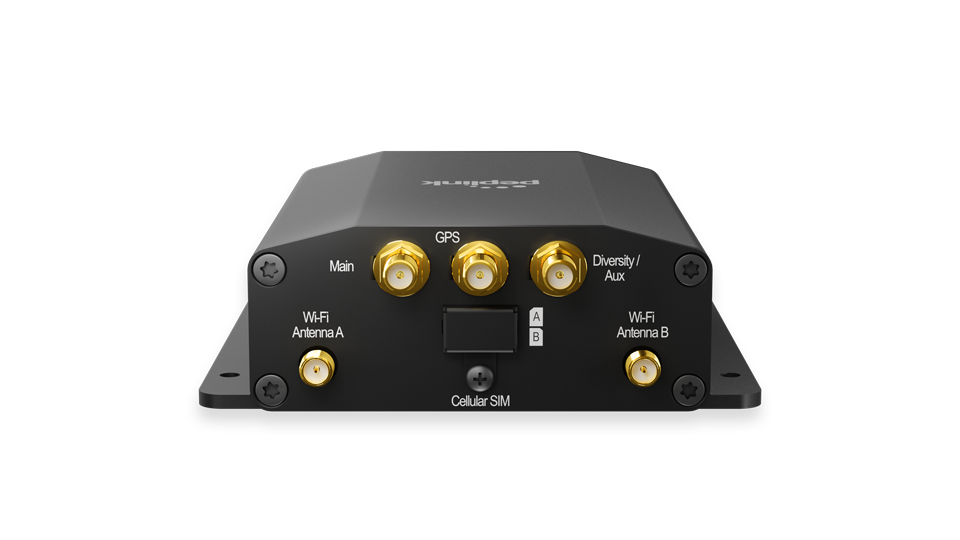

Antenna Connectors | 2x SMA Cellular Antenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |

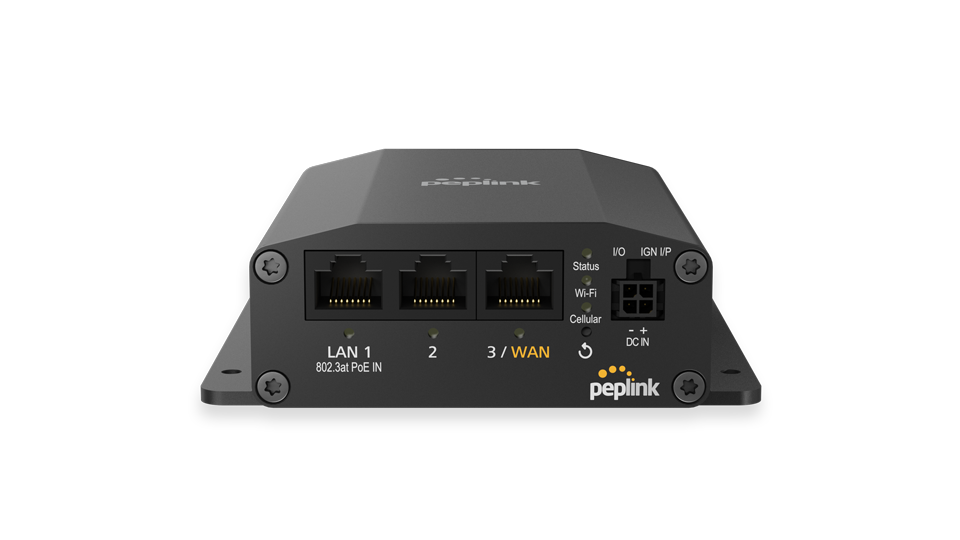

| LAN Interface | 2x 10/100/1000M Ethernet | Power Input | Power Port: 10V – 30V DC AC Adapter: AC Input 100V–240V / DC Output 12V Power over Ethernet 802.3at |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 5, 2X2 MIMO Wi-Fi WAN and/or AP |
Power Consumption | 13W (nominal), 18W (max.) |
| SpeedFusion features | Hot Failover / Smoothing / Bandwidth Bonding | Dimension | 5.0 x 4.2 x 1.4 inches / 125.7 x 107 x 35 mm |
| Number of SpeedFusion VPN Peers | 2 / 5 | Weight | 0.95 pounds / 430 grams |
| Feature | GPIO, Ignition Sensing | Operating Temperature | -40° – 149°F / -40° – 65°C |
| Router Throughput | 300Mbps | Humidity | 15% – 95% (non-condensing) |
| SpeedFusion VPN Throughput | No Encryption: 80Mbps 256-bit AES: 60Mbps |
Certifications | FCC, CE, RoHS UL 121201 (Class I and Division 2) E-Mark (Motor Vehicle) EN 61373 Shock and Vibration Resistance EN 50155 Railway Applications EN 61000 Electromagnetic Compatibility |
| Recommended Users | 1-60 | Package Content | 1x BR1 Mini 2x LTE Antennas (ACW-235) 2x Dual Band Wi-Fi Antennas (ACW-342) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4pin Power Supply (ACW-632) |
| Cellular Data Rate (Downlink/Uplink) |
CAT-7: 300 Mbps/150 Mbps CAT-6: 300 Mbps/50 Mbps CAT-4: 150 Mbps/50 Mbps |
Package Content for MAX-BR1-MINI-LTEA-B-T-JPC-PRM |
1x BR1 Mini 2x inAON67 LTE Antennas 2x Dual Band Wi-Fi Antennas (ACW-342) 1x GPS Active Antenna (ACW-232) |
| SIM Options | Nano-SIM (4FF) Pepplink eSIM BYO eSIM (2 profiles) |
Warranty | 1-Year Limited |
