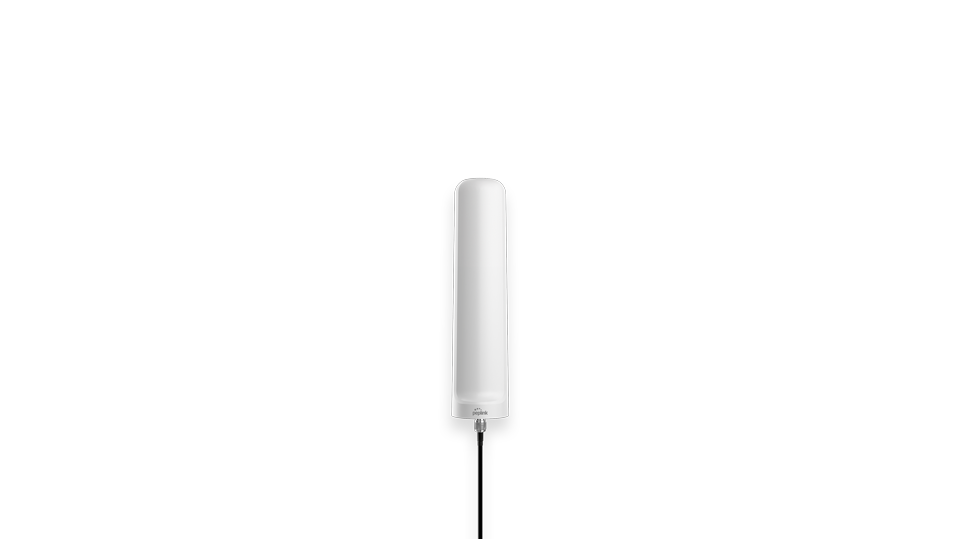

Maritime 20G Antenna
- 2×2 MIMO 5G Ready Cellular Antenna System with GPS
- 2xLTE/5G, 1xGPS
- Frequency range: 600-6000MHz
- IP68 Rating
- Cellular and GPS connector: SMA male
- Color: White
- Cable length: 6.5 ft / 2m
AED 1,700 EX VAT
| Weight | 3,8 kg |
|---|---|
| Dimensions | 66,8 × 15,3 × 15,5 cm |
| IP Ratings | IP68 |
| Cellular | |||
| Antenna elements | 2 elements | Cellular frequency bands & Gain | 3.2dBi: 410-470MHz 5.4dBi: 617-960MHz 4.9dBi: 1710-2700MHz 6.2dBi: 3400-4200MHz 6.8dBi: 4900-6000MHz |
| VSWR | <2.5: 410-470MHz <3.0: 617-960MHz <2.5: 1710-6000MHz |
Max feed power handling | 10W |
| Input impedance | 50 Ω | Polarisation | Linear |
| GPS | |||
| Frequency range | 1561-1602 MHz | Peak gain | 0.5dBi@1575MHz 1.6dBi@1602MHz |
| VSWR | < 2.5 | Output return loss | 10dB max |
| LNA gain | 28 ±3dB | Noise figure | 1.5dB max at 3.3V |
| Operating Voltage | 3.3V | Power consumption | 8.5mA ±2.5m at 3.3V |
| Cable (LTE/5G) | |||
| Type | CFD-200 | Length | 6’7″ / 2 m |
| Loss | 0.33 dB/m @ 900 MHz 0.49 dB/m @ 2000 MHz 0.55 dB/m @ 2500 MHz 0.87 dB/m @ 5800 MHz |
||
| Diameter | 13/64″ / 5.0mm | Jacket | Half matt PVC, UV resistant |
| Termination | SMA male, N-type female | ||
| Cable (GPS) | |||
| Type | RG-174 | Length | 6’7″ / 2 m |
| Loss | 3.4 dB/m @ 1000 MHz 4.9 dB/m @ 1800 MHz |
||
| Diameter | 0.1″ / 2.7mm | Jacket | Half matt PVC, UV resistant |
| Termination | SMA male, N-type female | ||
| Mounting | |||

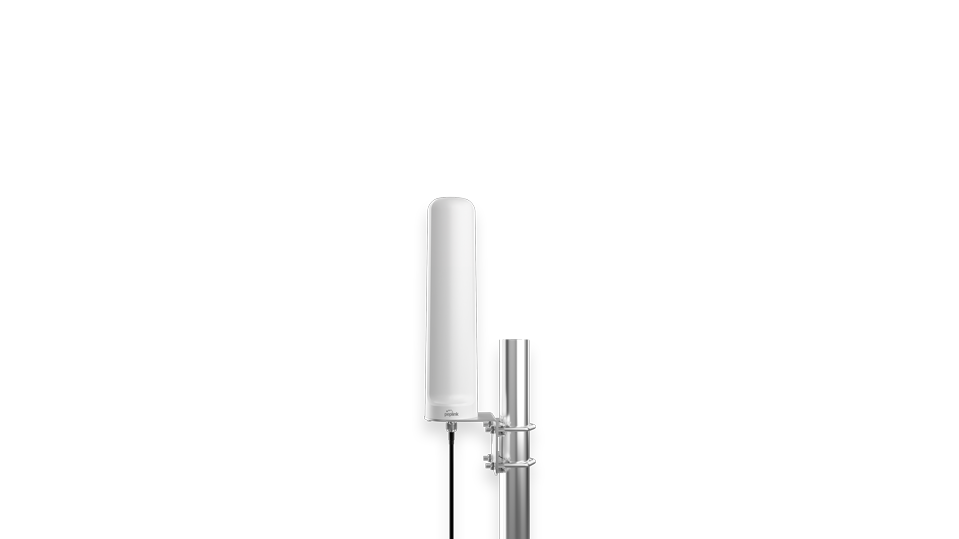

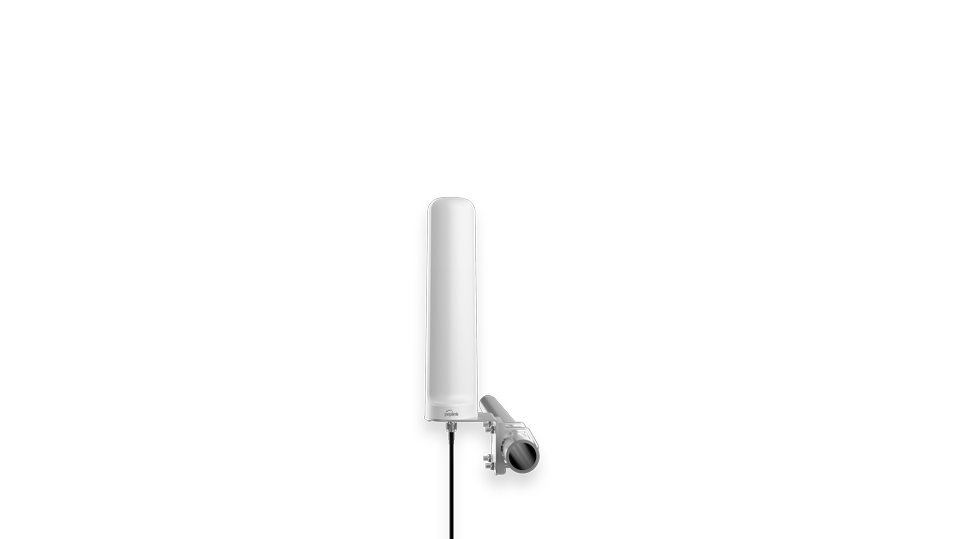

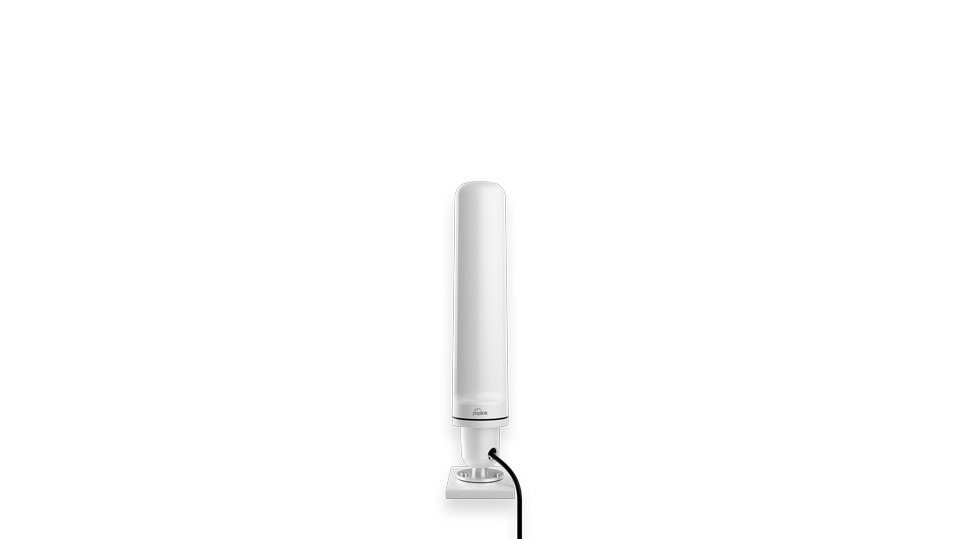

| Supported types | Standard Maritime 1″ 14 TPI thread Pole and wall mounting Pole diameter: 1-2″ (25-50mm) |
||
| Mechanical | |||
| Product dimensions | (Diameter) 3.78″ / 96mm (Height) 19.04″ / 483.5 mm |
Packaged dimensions | 26.3″ x 6.0″ x 6.1″ 668 x 153 x 155 mm |
| Housing material | UV stable PC | ||
| Package contents | |||
| SKU | ANT-MR-20G-S-W-6 | Antenna | Maritime Antenna 20G (SMA connectors) |
| Accesories | Maritime mount set L-shape mount set |
SKU | ANT-MR-20G-N-W-6 |
| Antenna | Maritime Antenna 20G (N-type connectors) | Accesories* | L-shape mount set |
| Environmental & Compliance | |||
| IP rating | IP68 | Operating temperature | -40° – 176°F / -40° – 80°C |
| Storage temperature | -40° – 176°F / -40° – 80°C | Compliance | ROHS, REACH, WEEE |
| Wind survivability | 100 mph / 160 km/h | Salt Spray | MIL-STD 810F/ASTM B117 |
