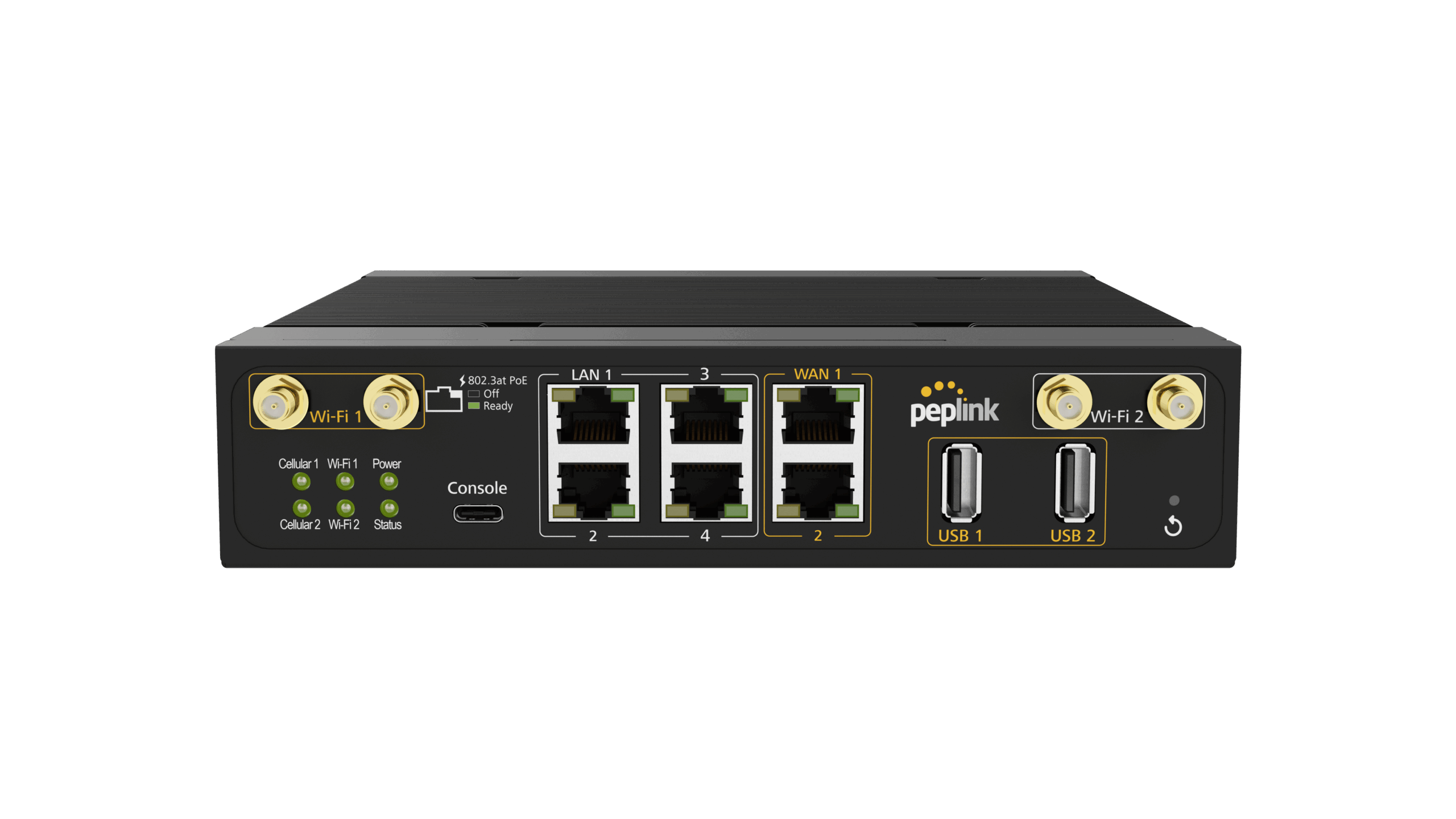

MAX MBX Mini
- 2x Embedded 5G Modem (Americas)
- SpeedFusion Bandwidth/VPN Bonding
- 2x USB, 2x Ethernet, 1x 802.11ac Wi-Fi WAN
- 4x GE LAN ports (IEEE 802.1x port authentication)
- 1x 802.11ac Wi-Fi AP
AED 26,000 EX VAT
Small is the new mighty.
Bring your deployments to life with the versatility of the MBX Mini. It’s just as brilliant as any other MBX device we have to offer. So connect your devices to the PoE enabled LAN ports to provide network simplicity as well as IEEE 802.1X port authentication. This MBX Mini has the power to achieve it all.
Keep your connection flowing in whatever deployment that you’re immersed in and deliver more power and redundancy with THREE power input options: AC, DC, and USB-C.
One. Two. Three. Four.
We know fast connections are critical to achieving great things. Its dual-band Wi-Fi and 5G capabilities ensure you experience the fastest available network. If the dual embedded cellular WANs are not enough, the MBX Mini can be expanded to FOUR cellular WANs by simply connecting it to our MAX Adapters via the dual USB ports.
Making hard to manage feel like hardly managing.
With this FusionSIM-ready router, you can say goodbye to switching and managing multiple SIMs via the router. FusionSIM offers remote provisioning of SIM profiles from anywhere in the world. Managing made easy, ready when you are!
| Weight | 3 kg |
|---|---|
| Dimensions | 29,5 × 27,5 × 10,5 cm |
| Cellular | 5G |
| WAN Interface | 2x Embedded Cellular Modems with Redundant SIM Slots 2x GE 2x USB 2.0 Interface |
Power Output | Up to 6x 802.3at PoE2 |
| LAN Interface | 4x GE | Power Consumption | 45 W (max.) |
| Wi-Fi Interface | 802.11ac/a/b/g/n, 1166 Mbps 2x2MIMO Wi-Fi WAN and/or AP Simultaneous Dual-Band |
Dimension | 7.32 x 8.05 x 1.61 inches 186 x 204.5 x 41 mm |
| Router Throughput | 2.5 Gbps | Weight | 4.19 pounds / 1.9 kg |
| SpeedFusion VPN Throughput | No Encryption 600 Mbps 256-bit AES 500 Mbps |
Operating Temperature | -40° – 149° F / -40° – 65° C |
| 5G Cellular Data Rate (Downlink/Uplink) | 5G: 3.4 Gbps / 900 Mbps LTE CAT-20: 1.6 Gbps / 200 Mbps |
Humidity | 15% – 95% (non-condensing) |
| SpeedFusion features | Hot Failover, Smoothing, Bandwidth Bonding, Bandwidth Overflow | Certifications | FCC, CE, RoHS, E-Mark, PTCRB Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999 Railway Applications: EN 50155 Electromagnetic Compatibility: EN 61000 |
| Number of SpeedFusion VPN Peers | 3/201 | Package Content* | MBX Mini, PSU 180W (ACW-630), 4x Dual-Band Wi-Fi Antennas (ACW-341) 1x QMA to SMA Adapter (for GPS), 1x GPS Antenna (ACW-232), Power cord, 1 Pair of Ear L-Mounts kit (ACW-756), Screw set of Ear L-Mounts kit, 3pin Terminal Block Connector (Ignition Sense), 4pin Terminal Block Connector (Power Supply), Rubber Foot Pad set |
| Recommended Users | 50-500 | Warranty | 1-Year Limited Warranty |
| Antenna Connectors | 8x QMA Cellular Antenna Connectors 1x QMA GPS Antenna Connector 4x RP-SMA Wi-Fi Antenna Connectors |
||
| Power Input | AC Adapter: AC Input 100V-240V / DC Output 12V DC Jack / Terminal Block: 12-56 V |
