Mobility Antennas, Outdoor Antennas

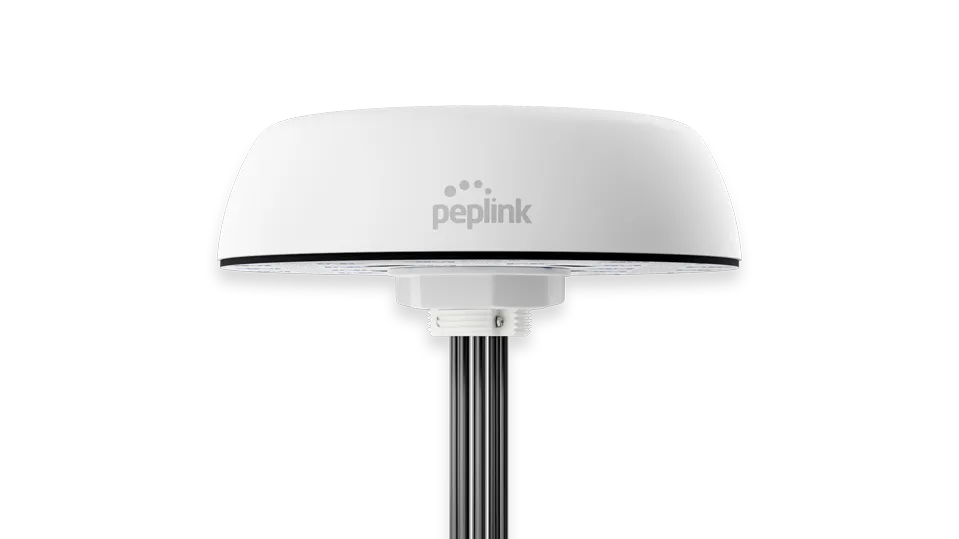

Mobility 42G
- 7-in-1 Cellular & Wi-Fi Antenna System with GPS Receiver
- 4x LTE/5G, 2x Wi-Fi, 1x GPS
- Frequency range: 600-6000MHz
- IP68 Rating
- Cellular and GPS connector type: SMA male
- Wi-Fi connector type: RP-SMA male
- Color: White
- Cable length: 6.5 ft / 2m “
AED 1,106 EX VAT
| Weight | 1,5 kg |
|---|---|
| Dimensions | 23,1 × 21,6 × 15,6 cm |
| IP Ratings | IP68 |
Cellular
| Antenna elements | 4 elements |
| Cellular frequencies* | 4.4dBi@617-960MHz 7.8dBi@1710-2700MHz 7.9dBi@3400-4200MHz 8.2dBi@5000-6000MHz |
| Cellular bands | LTE bands B1 to B86 (except B31, B72, B73, B87, B88), 5G bands n1 to n99 |
| VSWR | < 2.5 over 95% of the band |
| Feed power handling | 10W |
| Input impedance | 50 Ω |
| Polarisation | Linear |
| Ground plane | Not required |
Wi-Fi
| Antenna elements | 2 elements |
| Peak Gain & Frequencies | 5.0dBi: 2400-2500MHz 7.5dBi: 5000-6000MHz |
| VSWR | < 2.5 |
| Feed power handling | 10W |
| Input impedance | 50 Ω |
| Polarisation | Linear |
GPS
| Frequency range | 1561-1602 MHz |
| Peak Gain & Frequencies | 0.5dBi@1575MHz 1.6dBi@1602MHz |
| VSWR | < 2 dB |
| Output return loss | 10dB max |
| LNA Gain | 28 ±3dB |
| Noise figure | 1.5dB max at 3.3V |
| Operating Voltage | 3.3V |
| Power consumption | 8.5 ±2.5mA at 3.3V |
Cable (LTE / 5G, Wi-Fi)
| Type | CFD-200 |
| Loss | 0.33 dB/m @ 900 MHz 0.49 dB/m @ 2000 MHz 0.55 dB/m @ 2500 MHz 0.87 dB/m @ 5800 MHz |
| Diameter | 0.2″ / 5.0mm |
| Jacket | Half matt PVC, UV resistant |
| Cellular Termination | QMA male, SMA male |
| Wi-Fi Termination | QMA male, RP-SMA male |
Cable (GPS)
| Type | RG-174 |
| Loss | 3.4 dB/m @ 1000 MHz 4.9 dB/m @ 1800 MHz |
| Diameter | 0.1″ / 2.7mm |
| Jacket | Half matt PVC, UV resistant |
| Termination | QMA male, SMA male |

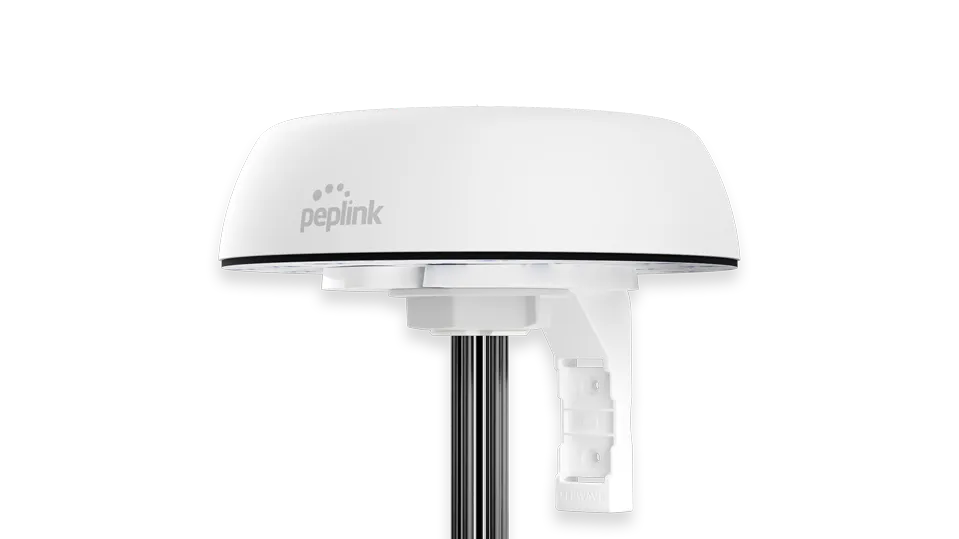

Mounting
| Supported types | Panel, wall, pole |
| Mounting hole | 1 11/16″ / 43mm |
| Max panel thickness | 19/32″ / 15mm |
Mechanical
| Product dimensions (Height) | 2.28″ / 58mm (spigot not included) |
| (Diameter) | 8.19″ / 208mm |
| Packaged dimensions | 9.09″ × 8.50″ × 6.14″ 231 × 216 × 156 mm |
| Radome material | UV stable PC |

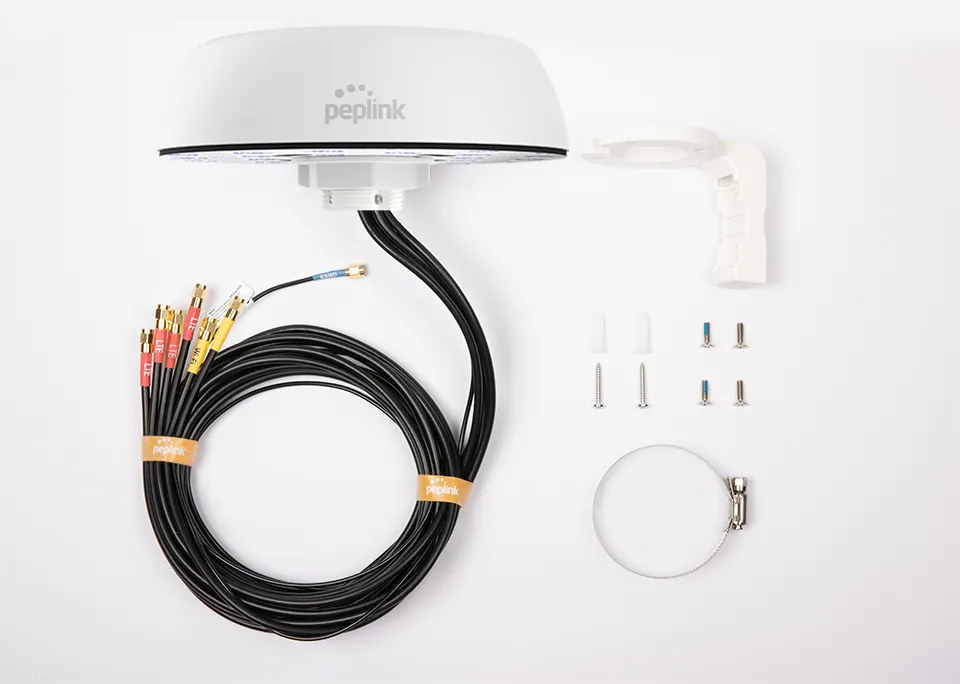

Package contents
| Antenna | Mobility 42G |
| Accessories | Wall/pole mount Double sided 3M adhesive pad (Diameter: 8.19″ / 208 mm) Thickness: 0.08″ / 2 mm |
Environmental, compliance
| IP rating | IP68 |
| Operating temperature | -40° – 176°F / -40° – 80°C |
| Storage temperature | -40° – 176°F / -40° – 80°C |
| Compliance | RoHS, REACH, WHEE |
| Wind Survivability^ | 167mph, 268 km/h |
| Enclosure flammability | UL 94 HB |
| Cable flammability | UL 758 (VW-1) |
| UV resistance | UL 746C (F1 long-term UV exposure) |
| Salt Spray | MIL-STD 810F/ASTM B117 |
