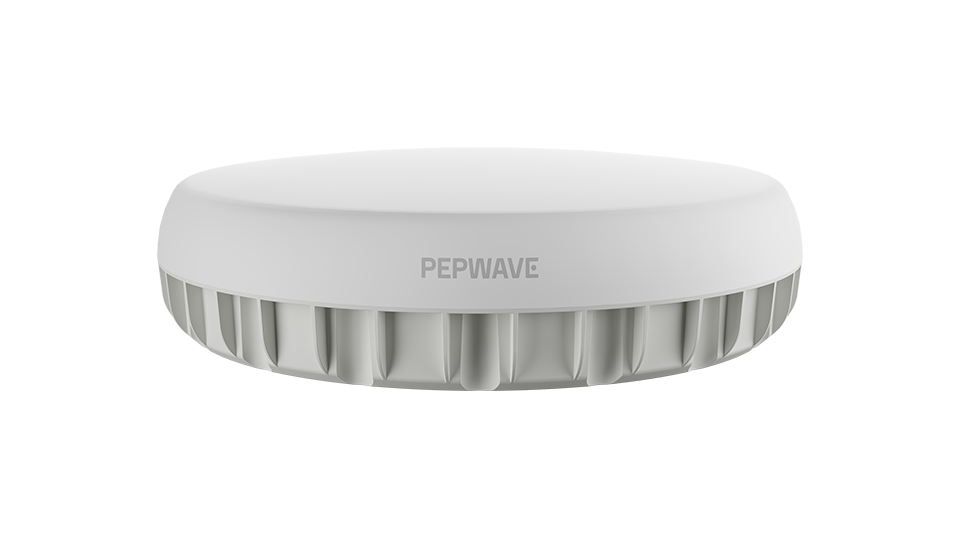

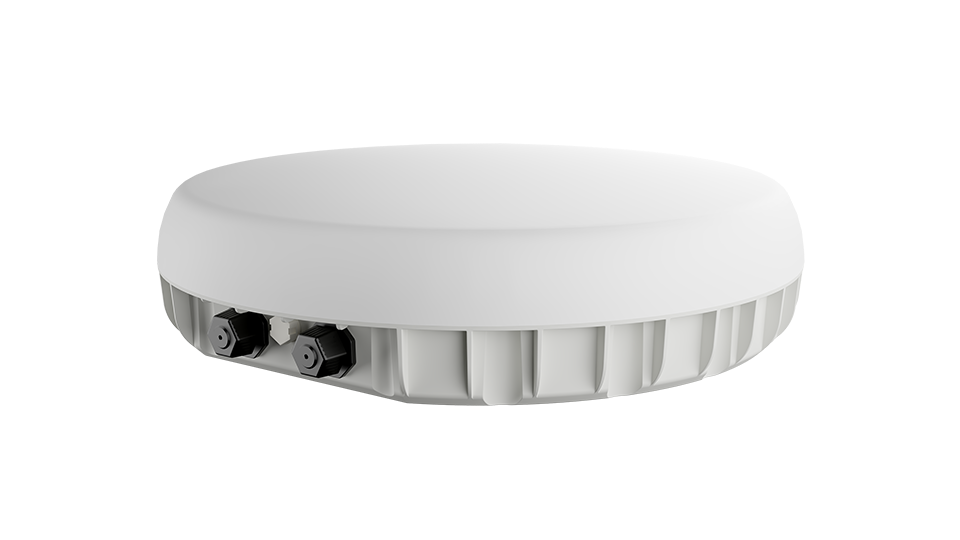

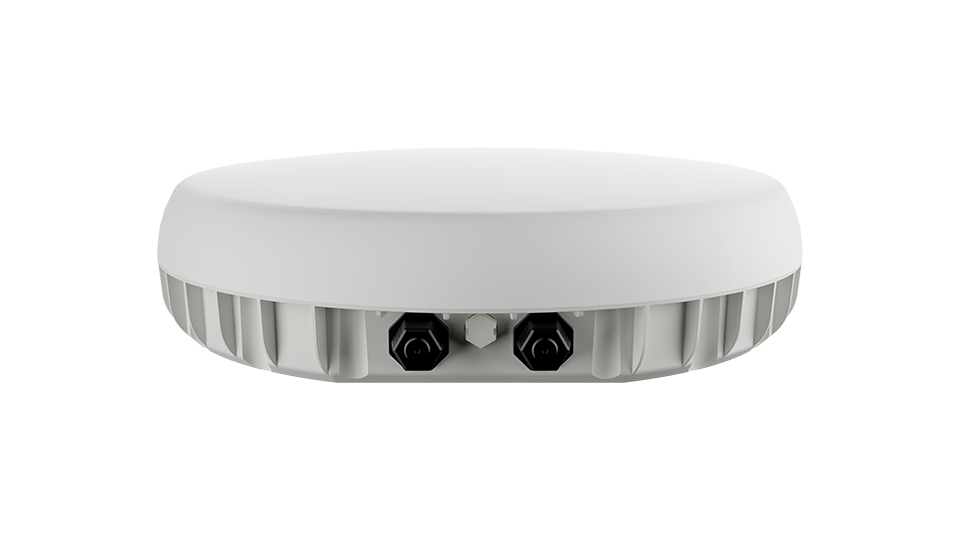

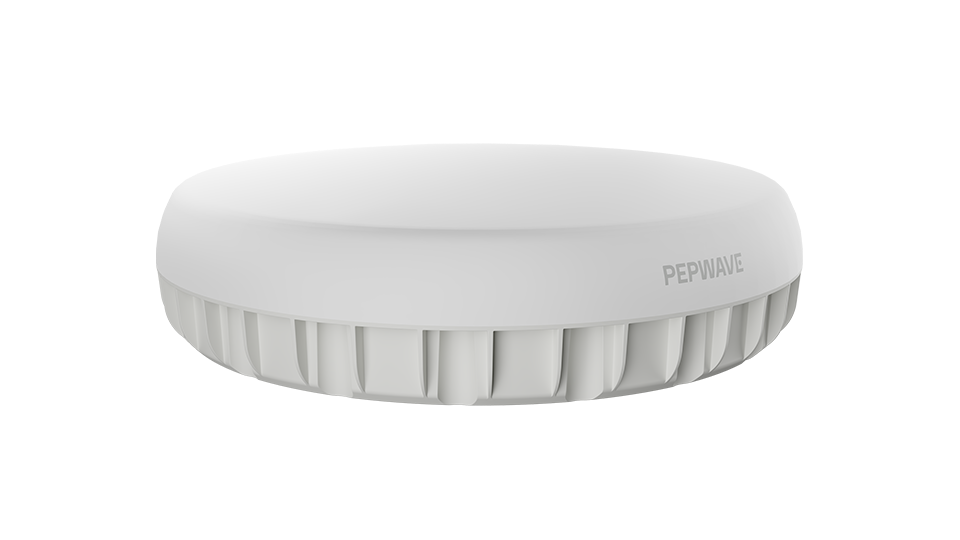

Peplink Antenna MAX Duo
IP-rated enclosure with built-in antenna to boost cellular and GPS coverage for your Peplink router
- 5G Ready Cellular Antenna Enclosure with GPS
- 4x LTE/5G, 2x Wi-Fi, 1x GPS
- Frequency range: 600-6000MHz
- Cellular and GPS connector type: SMA male
- Compatible with the following configuration^:
- 1x BR2 Pro,
- 2x BR1 Pro 5G
- 2x BR1 Pro (CAT-20)
- 1x BR1 Pro 5G + 1x BR1 Mini 5G
PoE Splitters are needed for devices without PoE Input capabilities.
AED 2,952 EX VAT
| Weight | 3 kg |
|---|---|
| Dimensions | 55,8 × 64,8 × 41,8 cm |
| Cellular | Wi-Fi | ||
|---|---|---|---|
| Antenna Elements | 8 elements | Antenna Elements | 2 elements |
| Peak Gain & Frequencies | 5.6dBi: 617-960MHz 6.5dBi: 1410-2700MHz 8.1dBi: 3400-4400MHz 7.4dBi: 5000-6000MHz |
Peak Gain & Frequencies | 5.4dBi: 2400-2500MHz 7.4dBi: 5000-6000MHz |
| VSWR | < 2.5 over 95% of the band | VSWR | < 2.5 |
| Feed Power Handling | 10W | Feed Power Handling | 10W |
| Input Impedance | 50 Ω | Input Impedance | 50 Ω |
| Polarisation | Linear | Polarisation | Linear |
| Connectors | Right angle SMA male | Connectors | Right angle RP-SMA male |
| GPS | Environmental, Compliance | ||
| Frequency Range | 1575-1602 MHz | IP Rating | IP67 |
| Peak Gain | 0.9dBi@1575MHz 0.8dBi@1602MHz |
Compliance | ROHS, REACH, WEEE |
| VSWR | < 2.0 | Enclosure Flammability | UL 94 V-0 (1.47 mm) |
| Gain: LNA | 27 ±3dB | UV resistance | UL 746C (F1 long-term UV exposure) |
| Noise Figure | 2.5dB | Salt Spray | MIL-STD 810F/ASTM 8117 |
| Operating Voltage | 3.3V | Mounting | |
| Power Consumption | 10 ±3.0mA | Supported Types | Surface, Pole |
| Connectors | Right angle SMA male | ||
| Mechanical | Package Contents | ||
| Product Dimensions | 4.82″ / 122.5 mm – Height 16.83″ / 427.5 mm – Diameter |
Package Contents | Antenna MAX Duo L-Mount Set Router fixation screws 5pcs Rubber Support TNF-19 3pcs Rubber Support TF-039 3pcs RJ45 glands 2pcs RJ45 caps 1pcs Double sided 3M adhesive pad 1pcs Ethernet cable (9.84″ / 250mm) 1pcs Ethernet cable (14.96″ / 380mm) |
| Packaged Dimensions | 21.97″ x 25.51″ x 16.46″ / 558 x 648 x 418 mm | ||
| Enclosure Material | UV stable PC | ||
