Peplink MAX Transit Pro E
1x 5G Modem with Redundant SIM Slots
1x Ethernet WAN
Up to 4x Ethernet LAN
802.3at PoE+ output on LAN 1
2×2 MIMO Simultaneous Dual-Band, Wi-Fi 6
1Gbps Router Throughput
Full antenna set
AED 3,691 EX VAT
| Weight | 1,6 kg |
|---|---|
| Dimensions | 28,7 × 15,3 × 7 cm |
| WAN Interface | 1x 10/100/1000M Ethernet 1x Embedded Cellular Modem with a Redundant SIM Slot |

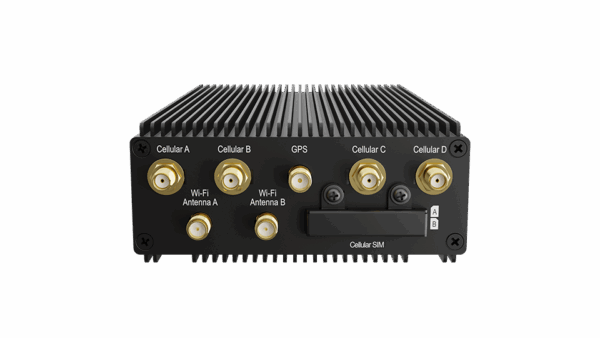

Antenna Connectors | 4x SMA Cellular Antenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |
| LAN Interface | 3x 10/100/1000M Ethernet | Power Input | Power Port: 12V – 56V DC AC Adapter: AC Input 100V–240V / DC Output 12V Terminal Block: 12V – 56V DC |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MIMO Wi-Fi WAN and/or AP |
Power Output | Power over Ethernet 802.3at 3 |
| SpeedFusion features | Hot Failover, Smoothing, Bandwidth Bonding | Power Consumption | 12W (nominal), 19W (max.) |
| Number of SpeedFusion VPN Peers | 2 / 5 / 10 / 20 1 | Dimension | 6.3 x 4.0 x 1.7 inches / 160 x 101 x 43.5 mm |
| Feature | GPIO, Ignition Sensing, Edge Computing with 8GB Storage, Location tracking with GPS and Dead Reckoning |
Weight | 2.1 pounds / 900 grams |
| Router Throughput | 1Gbps | Operating Temperature | -40° – 158°F / -40° – 70°C |
| SpeedFusion Throughput (No Encryption) | 400Mbps | Humidity | 15% – 95% (non-condensing) |
| SpeedFusion Throughput (256-bit AES) | 200Mbps | Certifications | CE, RoHS, RCM, UKCA |
| Recommended Users | 25-150 | Package Content 4 | 1x Transit Pro E 4x 5G/LTE Antennas (ACW-235) 2x Dual Band Wi-Fi Antennas (ACW-815) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4 Pin Power Supply (ACW-632) 1x 6 Pin Terminal Block Connector (ACW-131) 1 Pair of Mounting Brackets (ACW-724) |
| Cellular Data Rate 2 (Downlink/Uplink) | 5G: 3.4 Gbps / 900 Mbps CAT-20: 1.6 Gbps / 200 Mbps |
SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles) RemoteSIM from SIM Injector FusionSIM |
| Warranty | 1-Year Limited Warranty | ||
1 5 SpeedFusion VPN Peers are enabled with PrimeCare Subscription. 10 or 20 SpeedFusion VPN peers can be enabled with software license (PVN-LC-10 and PVN-LC-20). 2 Maximum theoretical data rates.
3 A 48V-54V DC power supply is required to support the PoE output.
4 MAX-TST-PROE-5GN-T-PRM-C1 includes a 10ft DC power cable (ACW-634) in place of the 12V 2A 4-pin power supply (ACW-632).
